Project 02 / Agentic AI

TalkToData

From a spreadsheet to a useful answer.

Overview

A closer look
at the system.

A full-stack AI analytics application that turns questions about CSV and Excel files into computed insights and charts. Includes authenticated uploads, persistent conversations, usage tracking, and chart storage.

Engineering focus: Full-stack + applied AI
What this demonstrates: A Next.js interface, FastAPI backend, authentication, persistent data, and an analytics agent.
Project context: Full-stack & AI development
Technology: OpenAI Agents SDK / Gemini / Next.js / FastAPI / Supabase

System study / 02Conceptual flow

01
Upload spreadsheetNext.js
02
Ask a questionFastAPI
03
Run analysis toolsOpenAI Agents SDK
04
Return charts & answerspandas · Supabase

Agentic AI

Product gallery

The interface, in context.

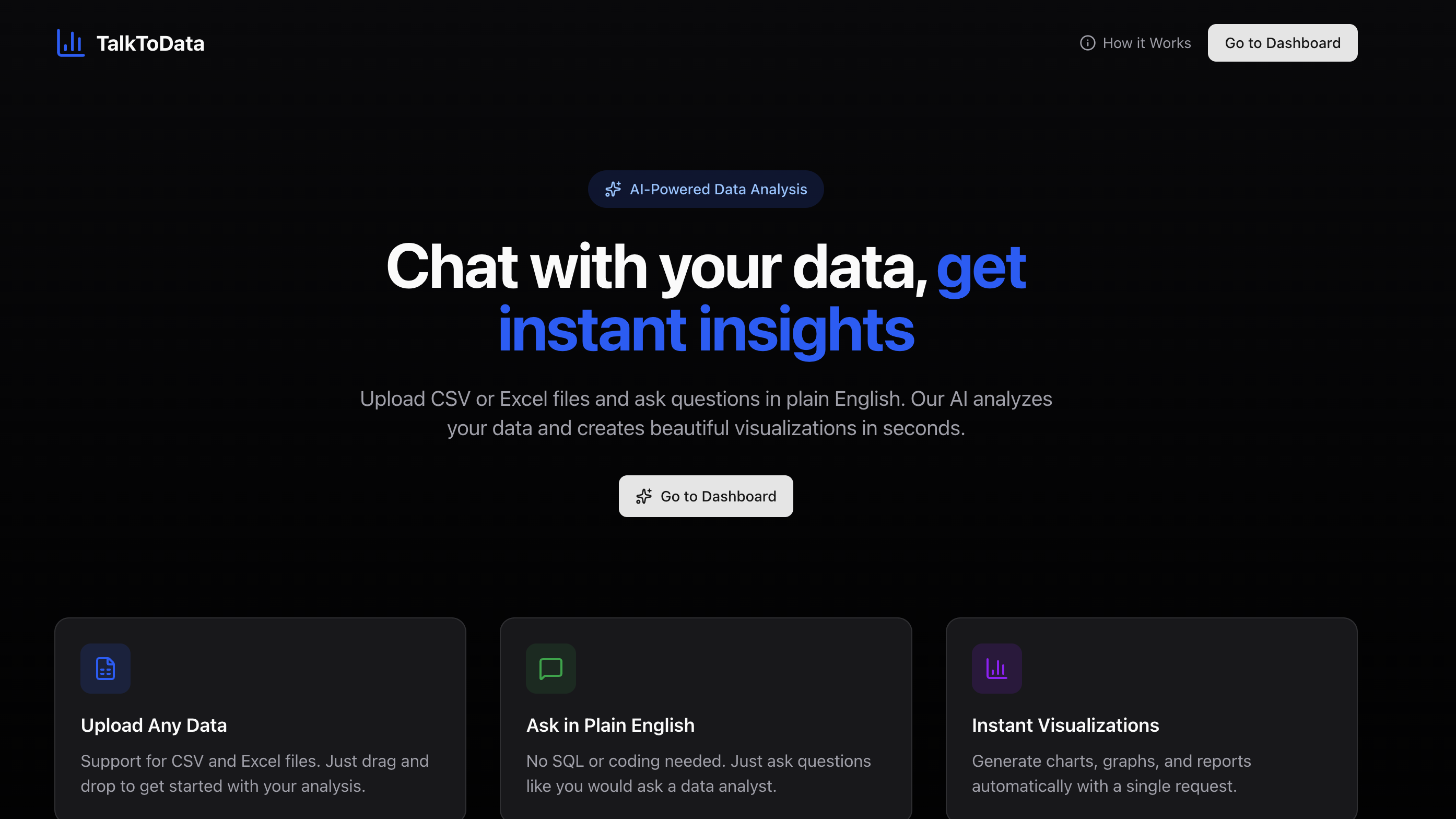

TalkToData landing page introducing CSV and Excel analysis through natural-language questions — 01 / Product landing pageView full size ↗

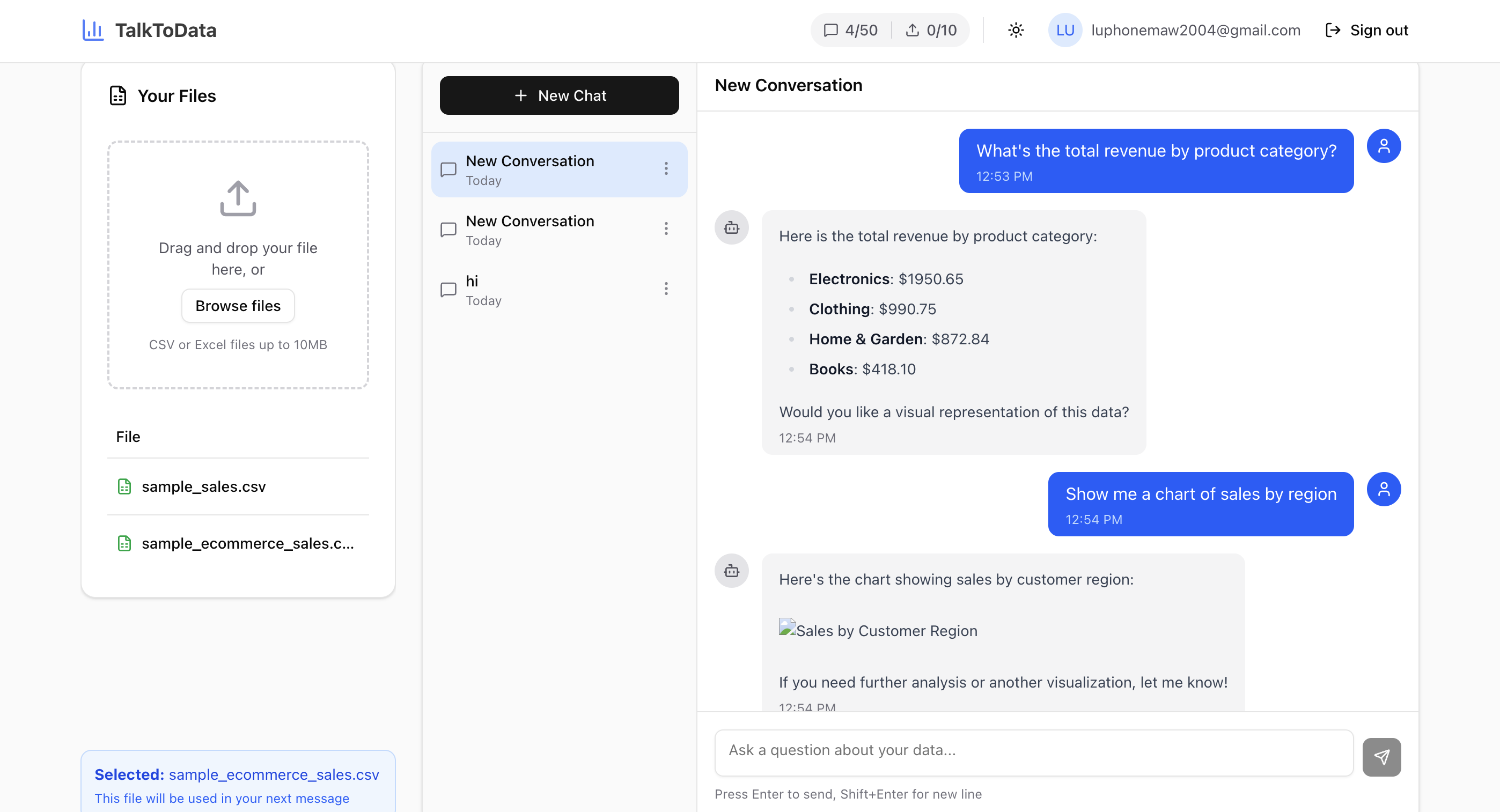

TalkToData workspace with file uploads, conversation history, usage counters, and computed revenue results — 02 / Analysis workspaceView full size ↗

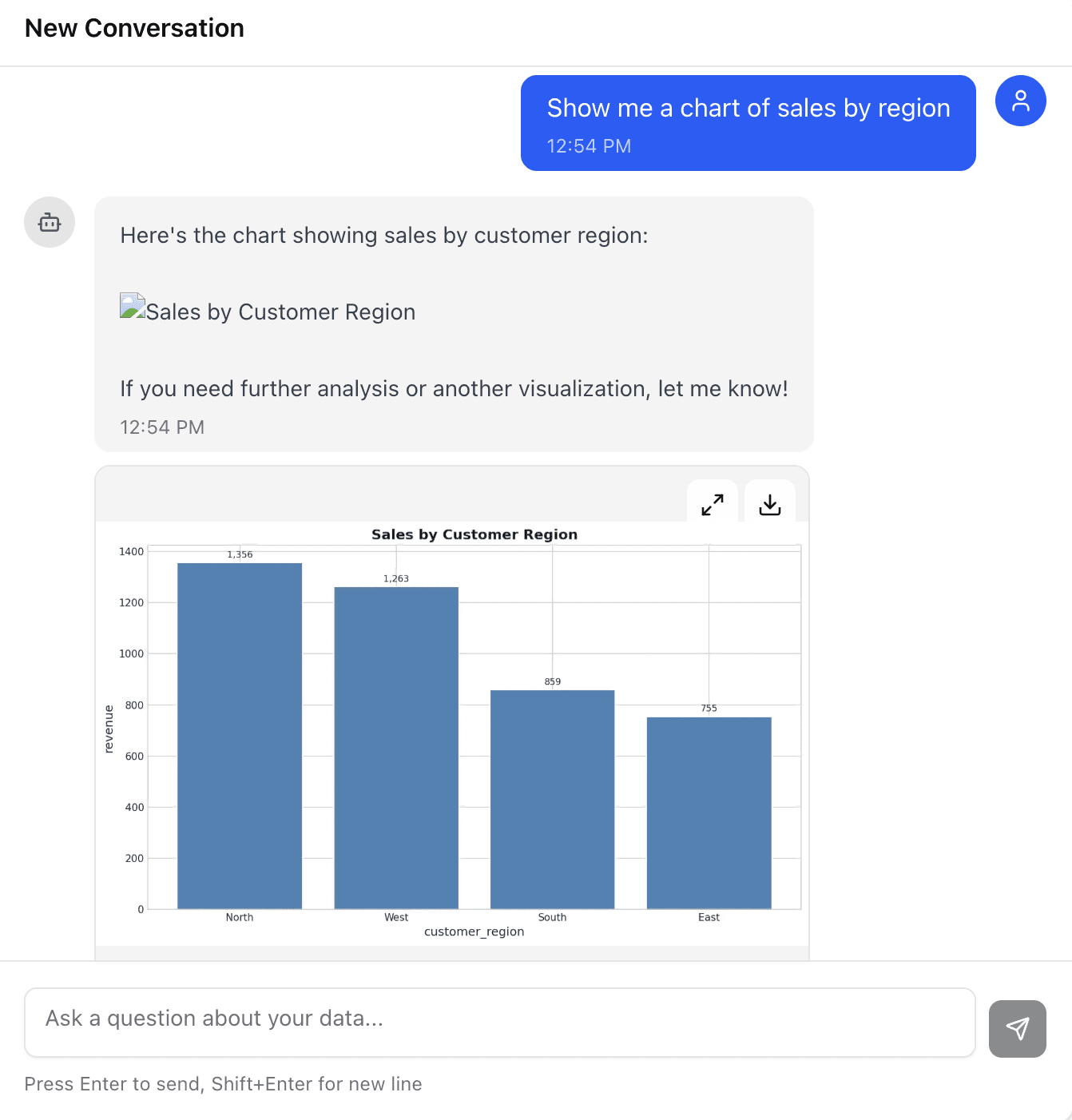

TalkToData conversation with a generated regional sales bar chart and download controls — 03 / Chart outputView full size ↗

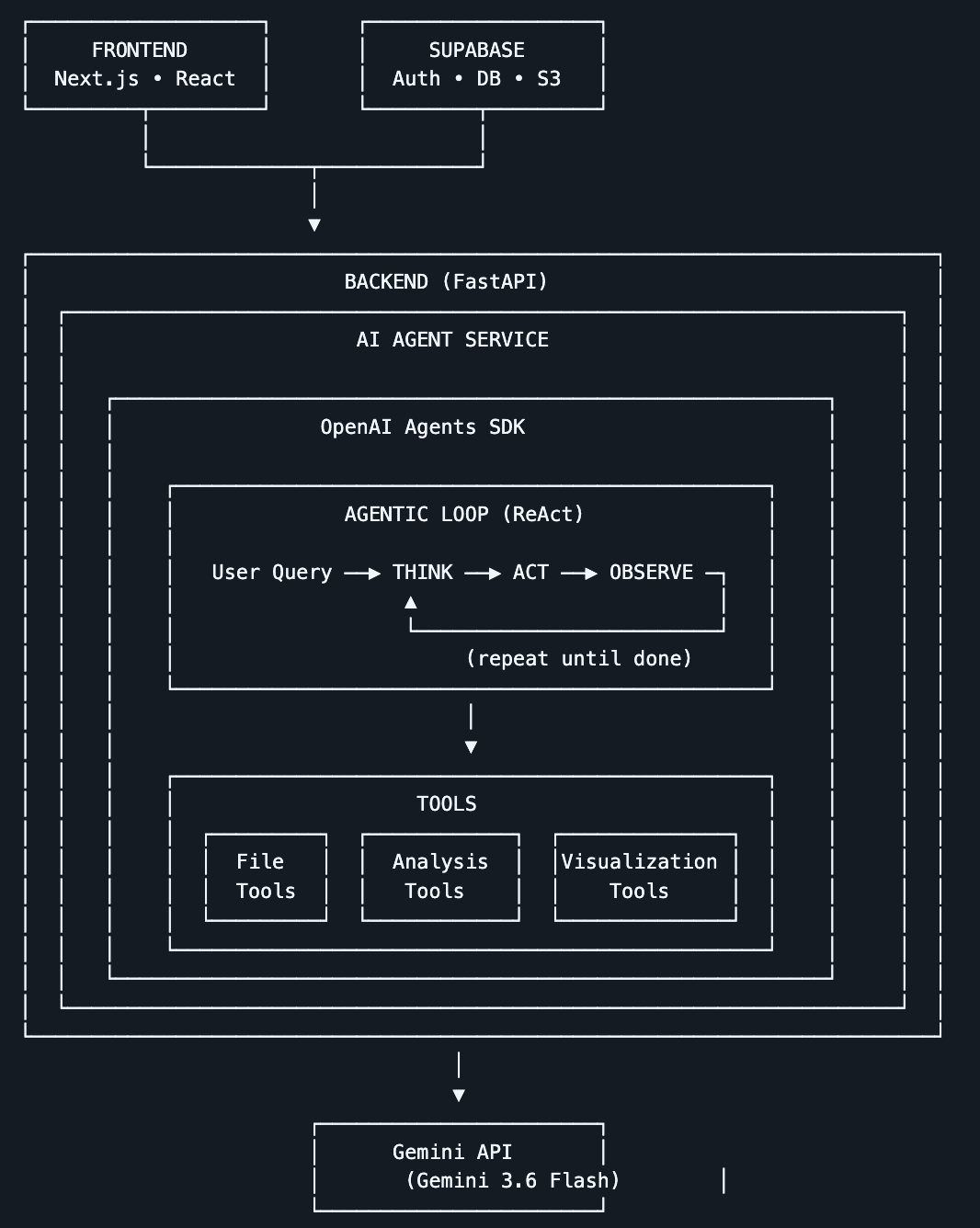

TalkToData architecture diagram connecting Next.js, Supabase, FastAPI, the OpenAI Agents SDK, analysis tools, and Gemini — 04 / Application architectureView full size ↗

01 / The problem

Working with a spreadsheet should not require writing a new analysis script for every question.

02 / Implementation & design

The OpenAI Agents SDK orchestrates a ReAct loop over file, analysis, and visualization tools. Inference uses Gemini through Google’s OpenAI-compatible endpoint, with a configurable model. Next.js provides the interface, FastAPI handles the backend, and Supabase supports authentication, persistence, and storage.

03 / Engineering challenge

Thirteen agent tools cover statistics, filtering, grouped aggregation, correlation, and chart generation. Authenticated uploads, persistent conversations, usage tracking, and stored charts support the application around those tools.

Results & capabilities

13 agent tools

Statistics, filtering, aggregation, correlation & charts

Gemini + OpenAI Agents SDK · Dockerized deployment
